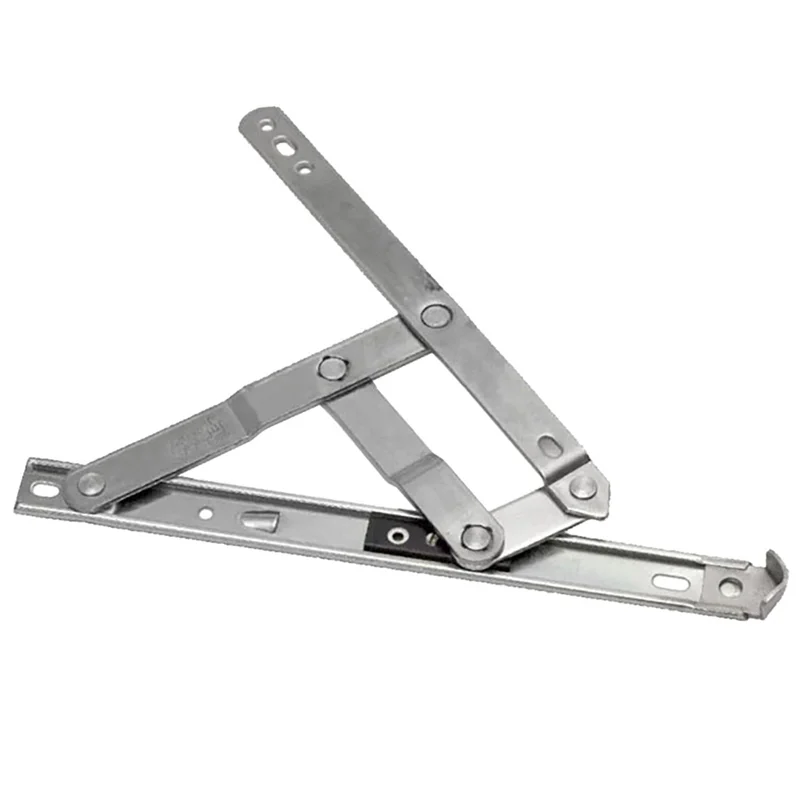

Truth Anderberg 301SS Heavy Duty 4 Bar Casement Awning Hinge Stainless Steel

Description

Anderberg 301SS Heavy Duty Commercial 4 Bar Casement / Awning Window Hinge

Heavy duty commercial 4-bar window hinge for casement and awning windows. Manufactured by Anderberg, distributed by Truth. This hinge features a built-in stop that prevents the window from opening too far, ensuring proper weight support. Handing is reversible (left or right hand).

Important Measurements (when replacing your old hinge):

• Track Width: 7/8″ (0.875)
• Track Stack Height: 5/8″ (0.625)

If your measurements do not match these, you may need a different hinge.

Specifications:

• Model: 301SS
• Type: Heavy Duty 4 Bar Hinge
• Material: Stainless Steel
• Stop: Yes
• Handing: Left or Right Hand (reversible)
• Shim: None (not included)

Available Track Lengths:

• 10″ – Supports up to 58 lbs at a width of 20″
• 12″ – Supports up to 73 lbs at a width of 25″
• 14″ – Supports up to 85 lbs at a width of 29″
• 16″ – Supports up to 99 lbs at a width of 40″
• 18″ – Supports up to 108 lbs at a width of 40″
• 20″ – Supports up to 117 lbs at a width of 50″
• 24″ – Supports up to 129 lbs at a width of 60″
• 28″ – Supports up to 175 lbs at a width of 80″

When ordering a replacement, round your existing track length DOWN to the nearest available size listed above.

Notes:

• Priced and sold each.
• When replacing hinges, it is best practice to replace them in pairs.
• If you need a shim for your replacement, please contact us before ordering.
