Description

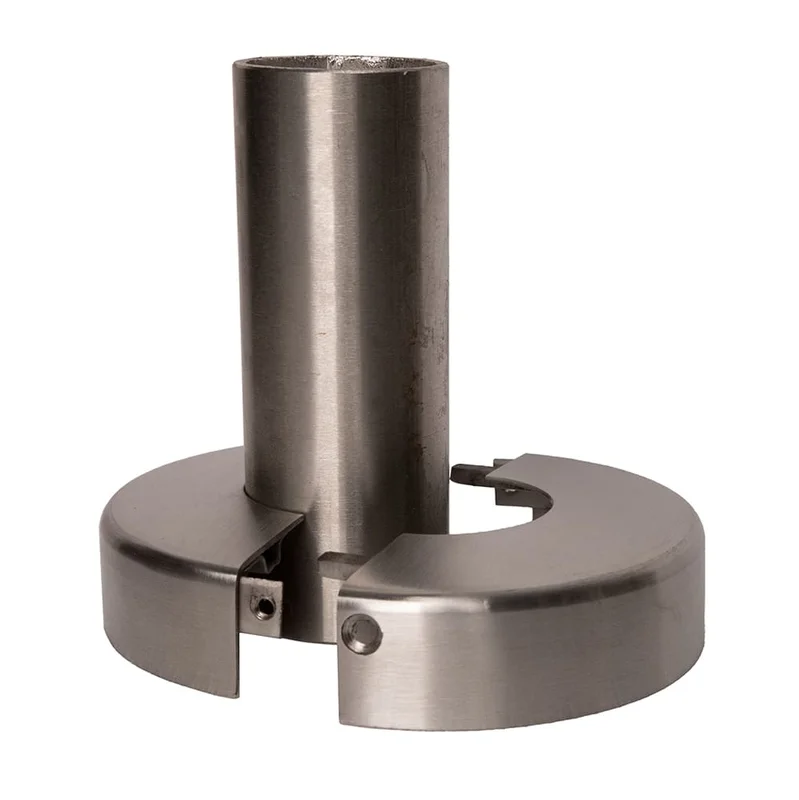

Two Piece Cover Flange Dimension Details
Available for: 1-1/4 pipe (1-5/8 OD), 1-1/2pipe (1-7/8 OD), 1-1/2 OD tube, and 2 OD tube
Overall diameter: 4-1/8
Fits base flanges and base plates up to 3-3/4
Height: 1
Material Type and Finish
Stainless steel type 316
Brushed satin finish
Cover Flange Installation
Using a flathead screwdriver, remove the two set screws.
Position one half of the cover around your stainless steel tube and verify sizing.
Slide the other half of the cover around the tube. Ensure the prongs are positioned properly, and align the set screw holes.
Screw in each set screw fully. Do not over-tighten.
Browse our full line of stainless steel products, including cable rail, wall brackets and more, beginning on catalog page 164.
