Description
The Radius Hardware Kit is an innovative sliding gate system designed for use in small spaces.
Developed and manufactured by our partners at FAC srl, the novel Radius gate hardware system enables sliding gates to curve as they open, dramatically reducing the required side width for an open gate. Therefore the system can be installed where space is very limited or where a swing gate would be too intrusive.
How It Works
Like our other small space solution kits, the Radius is designed for limited space conditions, including difficult openings and property line restrictions. This system works by adding hinges and swivel wheels to a series of leaves that comprise the gate. The leaves can then slide along a track that includes a 90-degree curved section.
The system consists of a primary kit (available in two different sizes) that includes all the essential components for the construction of the gate structure, and an accessory kit that contains the hardware components for the construction of each additional gate leaf following the first one.
Features and Specifications
Easily add a sliding gate to a driveway or perimeter security where side space is limited
Total maximum gate weight (not including Radius hardware): 1100 lbs
Maximum individual leaf weight: 200 lbs
360° swivel wheels on each leaf allow sliding on the curved track. Wheels are equipped with a shock-absorbing system that allows them to remain in contact with the track, preventing or minimizing the gate from derailing even in the event of ground unevenness.
Maximum gate leaf length: 29-½ with small configuration, 60 with large
Supported gate thickness range: 1-½ to 3
Compatible with rack and pinion gate operators (refer to datasheet for details)
Radius Gate System Technical Specifications

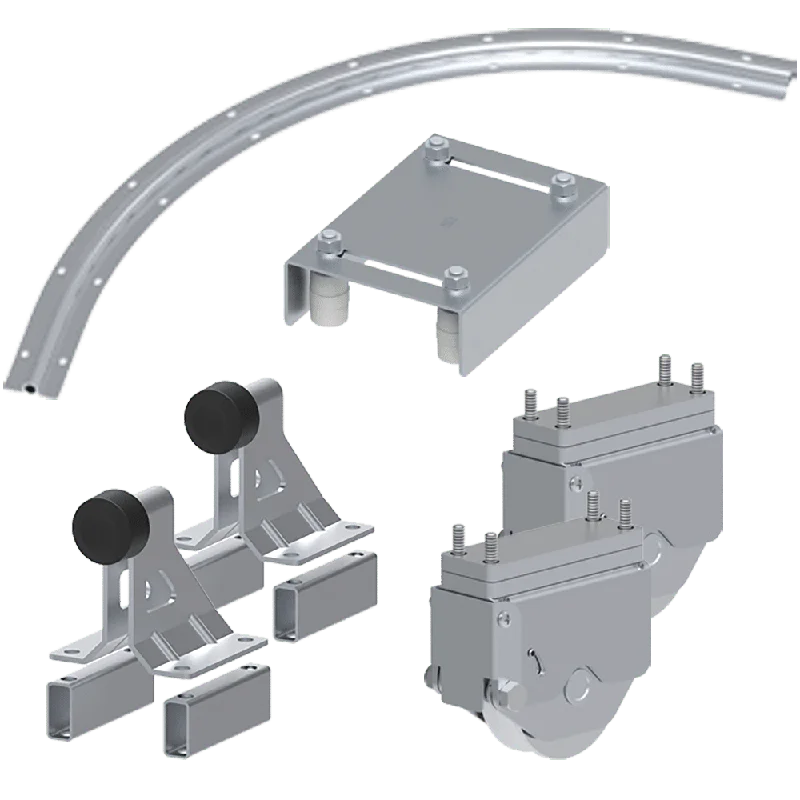

Available in Two System Configurations Large Kit (This Item) Includes
2 wheels
1 upper guide
2 stoppers
1 39-3/8 (1 m) radius curved ground track
Supported gate leaf lengths: 30 to 60
Small
Radius hardware kit, main leaf, with 19-3/4 (0.5 m) radius curved ground check.
*Note A complete hardware system will include:
(1) main kit (Small or Large radius size); one leaf hardware kit for each leaf not including the first one; straight track lengths based on the gate length; optional accessories to support a gate operator. If youre unsure what hardware youll need, contact us with your project details for a custom quote.
This Made in Italy design has been awarded the certification in accordance with UNI EN ISO 9001, recognizing the excellence of the product quality system and the internal efficiency of the various industrial processes.
