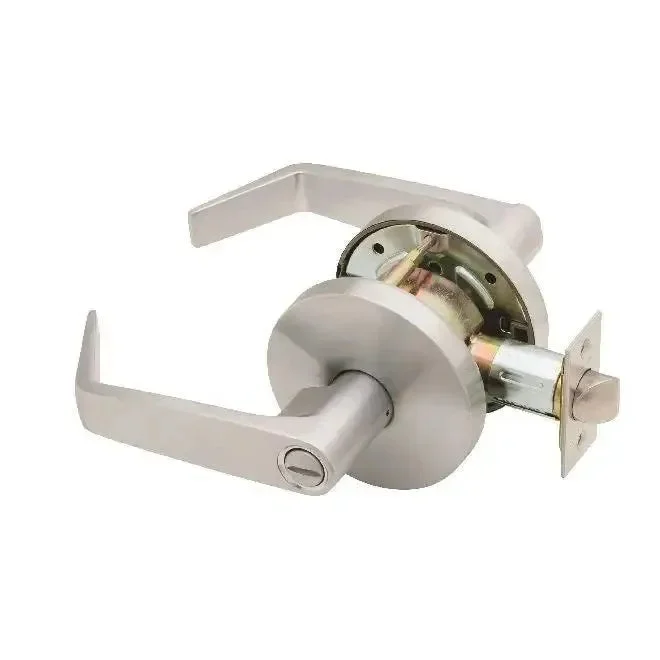

Falcon W Series Privacy Dane Lever Lock

Description

W Series Privacy Dane Lever Lock With 30206 Latch 30148 Strike

Features

• Latch bolt by levers. Outside lever is locked by push button on inside lever. Rotating inside lever or closing door releases push button and frees outside lever. Inside lever is always free. Emergency release in outside lever unlocks door.
• Levers are solid pressure-cast zinc, fi nished to match mating parts. Roses are wrought brass or bronze installed over steel through-bolted rose inserts. A spring-loaded retainer secures levers. Secure side retainer cannot be depressed without a key that operates the lock

Specifications

• Backset: 2-3/4” standard; 2-3/8” also available.
• Door Thickness: 1-3/8” to 1-3/4” standard.
• ANSI Certification: Grade 2
