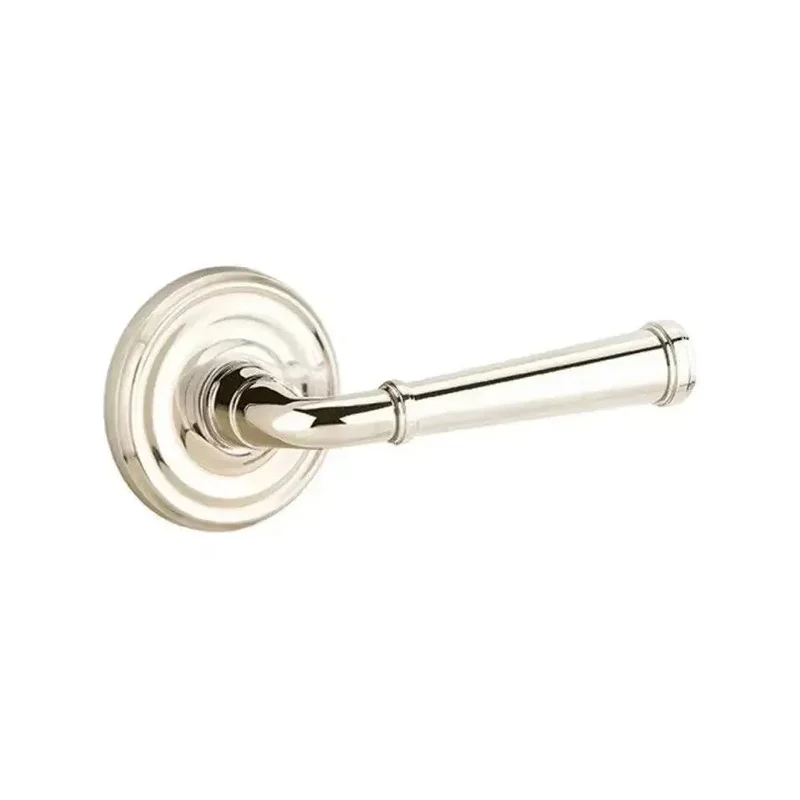

Emtek Merrimack Lever With Regular Rosette

Description

The Emtek Merrimack Lever with Regular Rosette feels right at home wherever you put it. With its smooth curves and classic base, this lever brings a touch of traditional charm without feeling old-fashioned. It’s sturdy enough to handle daily life yet refined enough to dress up any door. Think of it as the finishing touch that quietly pulls a room together.

Passage Features

• Passage levers do not have an internal locking mechanism. To be paired with a deadbolt for an exterior door, or on an interior door that doesn’t require privacy. Great for a walk-in linen closet.
• Handing Required For Leversets
• Complete set includes standard rotation latch and strike plate.
• Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
• Fits doors between 1 3/8” – 2″ thick with a 2-1/8″ bore standard door prep.

Privacy Features

• Privacy levers include a locking mechanism, usually in the form of a small push pin lock on the side of the lever. Perfect for use on bedroom and bathroom doors where locking is needed.
• Handing Required For Leversets
• Complete set includes standard rotation latch and strike plate.
• Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
• To order upgrade 28º rotation latch, add product code…
• Fits doors between 1 3/8” – 2″ thick with a 2-1/8″ bore standard door prep.

Dummy Features

• Dummy sets have no latch and require no bore hole. They are surface mounted to the door.
• Often used in conjunction with a passage or privacy set for double or french doors.
• This is a dummy “set” so it comes with both the interior and exterior handles.

Concealed Fastener Features

• Concealed Fastener Mechanism provides a clean look with no visible screws on the rosettes.
• Handing not required
• Leverset supplied with 28º rotation latch and dust box. The 28º latch (vs the standard 45º latch), requires less rotation to disengage the latch and open a door when compared to standard latches.
• Door thickness for CF Mechanism is 1 3/8” to 1 3/4”
• Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.

Helpful Resources

• Emtek Passage/Privacy Levers & Knobs Technical Specs
• Emtek Passage/Privacy/Dummy Levers & Knobs Installation Instructions
• Emtek Concealed Fastener Passage/Privacy Installation Instructions
• Emtek Key In Levers & Knobs Lock Installation Instructions
• Emtek Product Warranty
