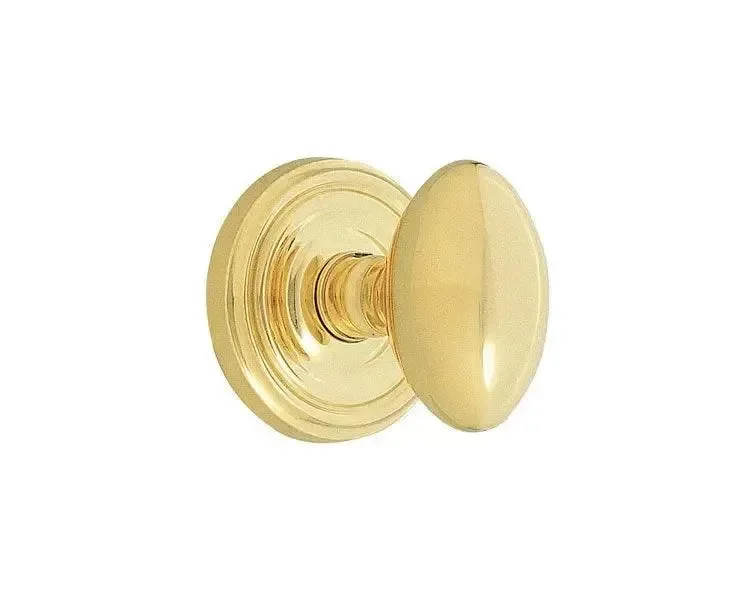

Emtek Egg Knob with Regular Rosette

Description

Upgrade your home’s decor with the elegant Emtek Egg Knob and Regular Rosette. The ergonomic design of the egg knob offers a comfortable and tactile feel, while the rosette’s refined simplicity complements a wide range of interiors. This high-quality set is crafted for durability, ensuring it remains a beautiful feature in your home for years to come. Ideal for any room, it adds a touch of classic beauty to your doorways.

• Knob dimensions: 1 1/2″ x 2 1/2″
• Projection: 2 3/4″

Passage Features

• Passage knobs do not have an internal locking mechanism. To be paired with a deadbolt for an exterior door, or on an interior door that doesn’t require privacy. Great for a walk-in linen closet.
• Handing Not Required For Knobsets
• Sold as complete set. Includes standard rotation latch and strike plate
• Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
• Fits any door between 1-3/8” to 2-1/4″ thick with a 2-1/8″ bore standard door prep

Privacy Features

• Privacy knobs include a locking mechanism, usually in the form of a small push pin lock on the side of the knob. Perfect for use on bedroom and bathroom doors where locking is needed.
• Handing Not Required For Knobsets
• Sold as complete set. Includes standard rotation latch and strike plate
• Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
• Fits any door between 1-3/8” to 2-1/4″ thick with a 2-1/8″ bore standard door prep

Dummy Features

• Dummy sets have no latch and require no bore hole. They are surface mounted to the door.
• Often used in conjunction with a passage or privacy set for double or french doors.
• This is a dummy “set” so it comes with both the interior and exterior handles.

Concealed Fastener Features

• Concealed Fastener Mechanism provides a clean look with no visible screws on the rosettes.
• Handing not required, except for knob by lever
• Door thickness for CF Mechanism is 1 3/8” to 1 3/4”. Specify if thicker
• Knobset supplied with standard rotation latch and dustbox

Single Cylinder Keyed Entry Features

• The knobset is operated by a key from the exterior, and a thumbturn from the interior. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
• Sold as complete set. Includes rosette, latch and strike plate
• Constructed from solid brass for a heavy duty feel and lasting durability
• Schlage C keyway
• Standard latch is for 2-3/8″ backset. Specify 2-3/4″ backset if required
• Standard Door Thickness: 1 3/8”- 2 1/16”
• Extended Door Thickness Range: 2 1/16”- 2 3/4”
• **Specify Door Thickness when ordering. Extension Kit not available separately**

Helpful Resources

• Emtek Passage/Privacy Levers & Knobs Technical Specs
• Emtek Passage/Privacy/Dummy Levers & Knobs Installation Instructions
• Emtek Concealed Fastener Passage/Privacy Installation Instructions
• Emtek Key In Levers & Knobs Lock Installation Instructions
• Emtek Product Warranty
