Chain Link 8-Wheel Titan Truck Assembly Includes 2″ [1 7/8″ OD] Guide Wheels and 2″ Standard Bearings (Galvanized Steel)

Description

Details Chain Link 8-Wheel Titan Truck Assembly Includes 2″ [1 7/8″ OD] Guide Wheels and 2″ Standard Bearings (Galvanized Steel)

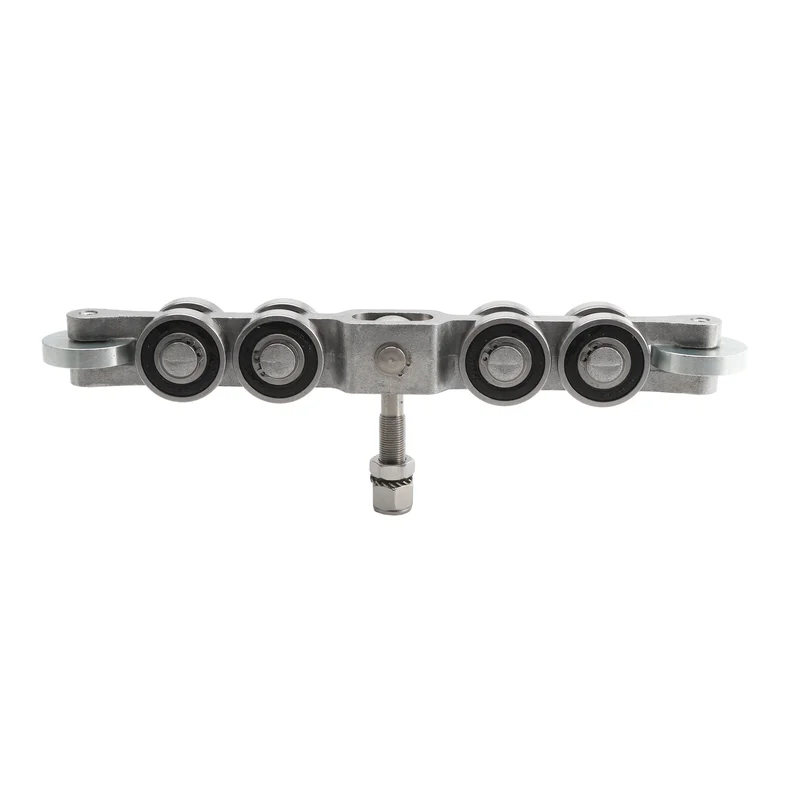

The 8 Wheel Truck Assembly features 2″ guide wheels and 2″ standard bearings. This 8-wheel truck assembly is 15.5″ long and is designed to be mounted in standard or overhead mounting tracks. Truck assemblies are generally used in situations where full cantilever gate systems are implausible. This helps keep most moving parts and mechanical processes encased in the guide frames, protecting them from inclement weather and erosion.

Features:

Easy To Install
Great Fit In Applications Where Full Cantilever Gate Systems Won’t
Keeps Most Moving Parts And Mechanical Processes Encased In The Guide Frames, Protecting Them From Weather Fit Specifications:

Center Bolt: 5/8″
Nominal: 2″ Diameter
Material: Galvanized Steel
Horizontal Wheel O.D. 2.1″
Vertical Wheel O.D. 2.045″

Please Note: Due to manufacturing differences, the product you receive may not match the picture.
