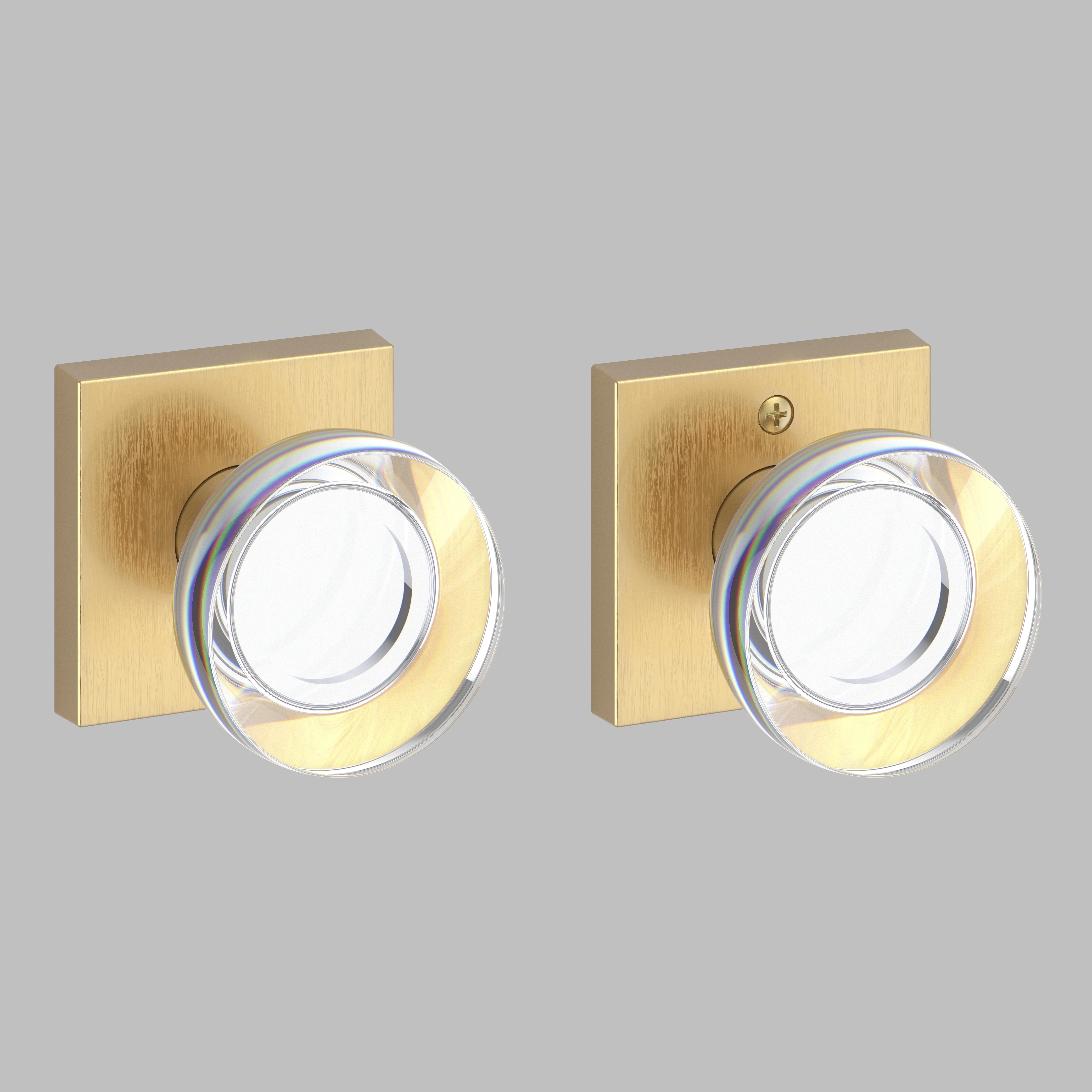

Baldwin CCYxCSR Reserve Contemporary Crystal Knob w/ Contemporary Square Rose

Description

Functions available: passage, privacy, full dummy, and half dummy.
Handing is not required.
Solid forged brass construction.
Door Prep: 2-1/8 in. cross bore and 1 in. edge bore for latch.
Full Bore required for Entry, Privacy, Passage and Full Dummy. Half Dummy is surface mounted.
Accommodates door thickness 1-3/8 in. to 2 in. Optional conversion kit available for 2 in. to 2-1/2 in. thick doors, sold separately.
Adjustable backset as standard. Fits 2-3/8 in. or 2-3/4 in. pre-bored doors.
6 Way Adjustable Latch as standard. Includes collar, back plate, and round and square fronts.
Dual Strike as standard. Includes both Square Corner and Round Corner Strikes. Extended Lip Strike (ES) shipped with all thick door locks.
1/2 in. function bolt for passage, privacy and entry functions.
Knob/Lever rotate at 55 – 60 degrees.
Note: Interior and dummy functions have exposed screws.
Exceeds ANSI/BHMA Grade 2 security.
20-minute certified UL option available.
Rose: 2-9/16 in. x 2-9/16 in.
Specify finish when ordering.
